| PiPe | 60 | 65 | 75 | |||
|---|---|---|---|---|---|---|
| FLOW RATE | EFFICIENCY | PRESSURE DROP | EFFICIENCY | PRESSURE DROP | EFFICIENCY | PRESSURE DROP |
5.8 L/min |
61,2% |
0,0 - 0,1 bar |
66,6% |
0,0 - 0,1 bar |
74,5% |
0,0 - 0,25 bar |
9.2 L/min |
57,4% |
0,2 - 0,5 bar |
62,7% |
0,3 - 0,6 bar |
69,2% |
0,2 - 0,4 bar |
12.5 L/min |
50,5% |
0,2 - 0,4 bar |
57,6% |
0,4 - 0,8 bar |
66,2% |
0,4 - 0,6 bar |
| Installation |
Vertical |
| Temperature Range |
0 - 60˚C |
| Drinking water maximun pressure |
6.0 bar |
| Drained water maximun flow rate (1) |
25.0 L/min |
| Drained water recommended flow rate |
12.5 L/min |
| Heat exchanger material |
Stainless steel 316L |
| Body Material |
Stainless steel/PVC |

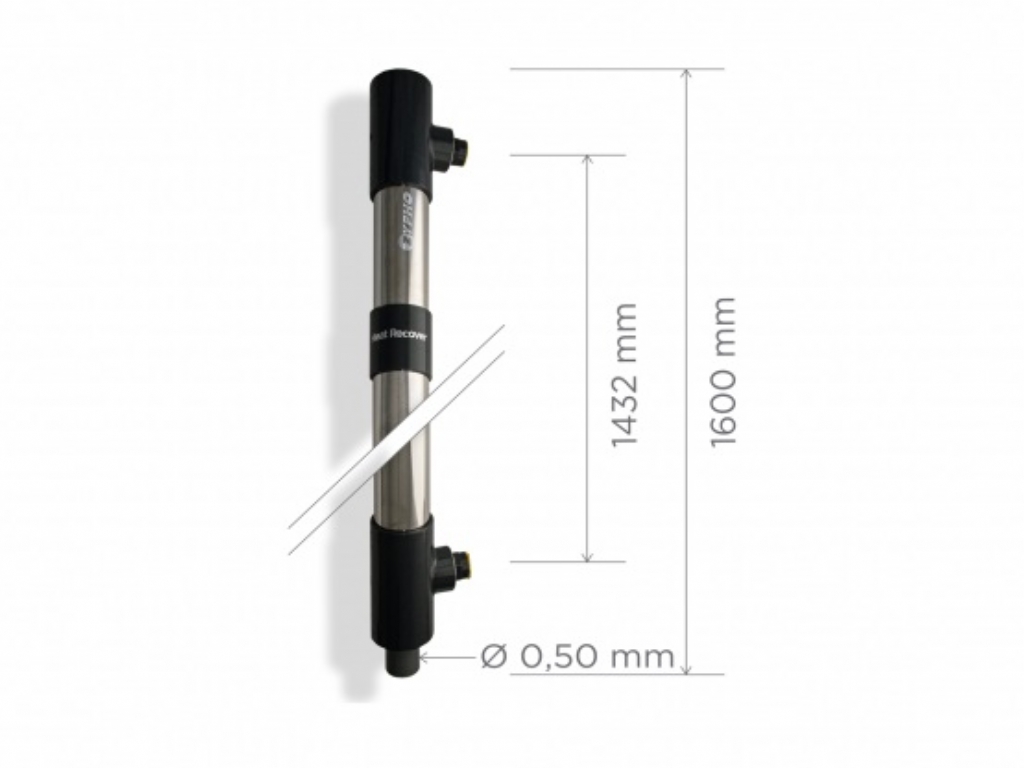

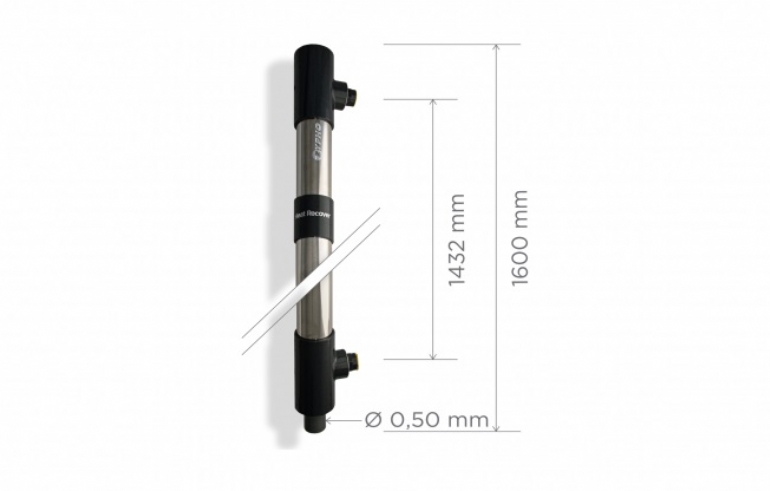

| Overall height required for the installation (mm) |
PiPe 60: 1650 | PiPe 65: 2000 | PiPe 75: 2350 |
| Efficiency at water flow 5.8 l / min |
67% |
| Efficiency at water flow 9.2 l / min |
63% |
| Efficiency at water flow 12.5 l / min |
58% |
| Heat exchanger material |
Stainless steel 316L |
| Max water pressure in the pipe |
6 bar |
| Weight (kg) |
4.5 kg |
